BW-RGB - Image 1

Larnitech

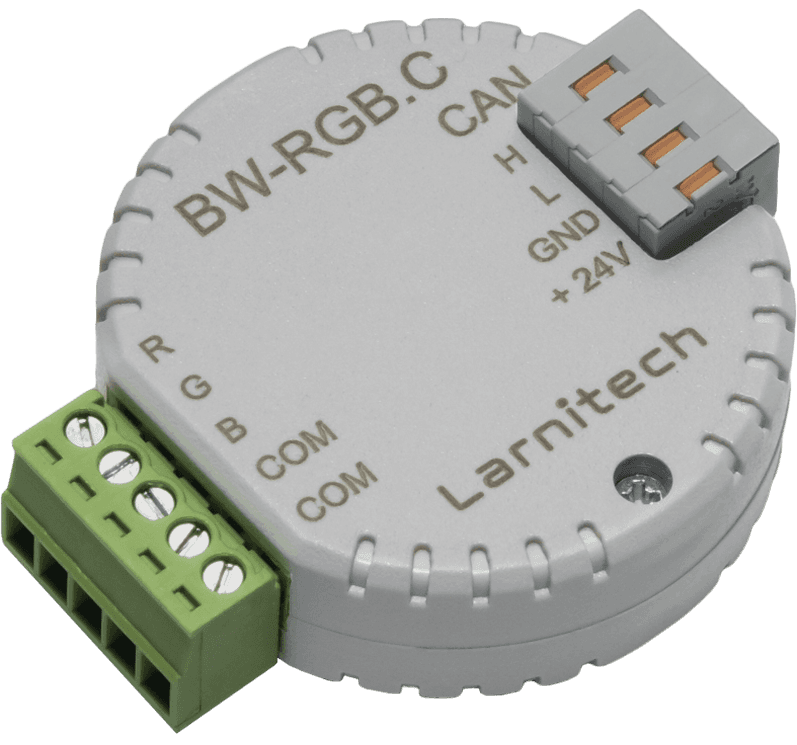

BW-RGB

Contact for price
Brand
Larnitech
System
Larnitech
Quantity:

What's Included:

  • Professional installation and setup
  • Verified and certified equipment only
  • Initial configuration and user guidance
  • Reliable technical support

Technical Parameters

Size
45x42x14 mm
Weight
25 g
Bus type
CAN (4-wire)
Mounting
Free
Protection
IP40
Current type
DC
Power supply
11.5 … 27.5 V DC from CAN
Case material
ABS
Input voltage
11.5 … 25V
Adjustment type
PWM
Max current(24V)
25 mA
Temperature range
-10 … +50 °C
Output channels qty
3
Max load per channel
1 A (12W at 12V)
Max load power per device
3A (36W at 12V)
