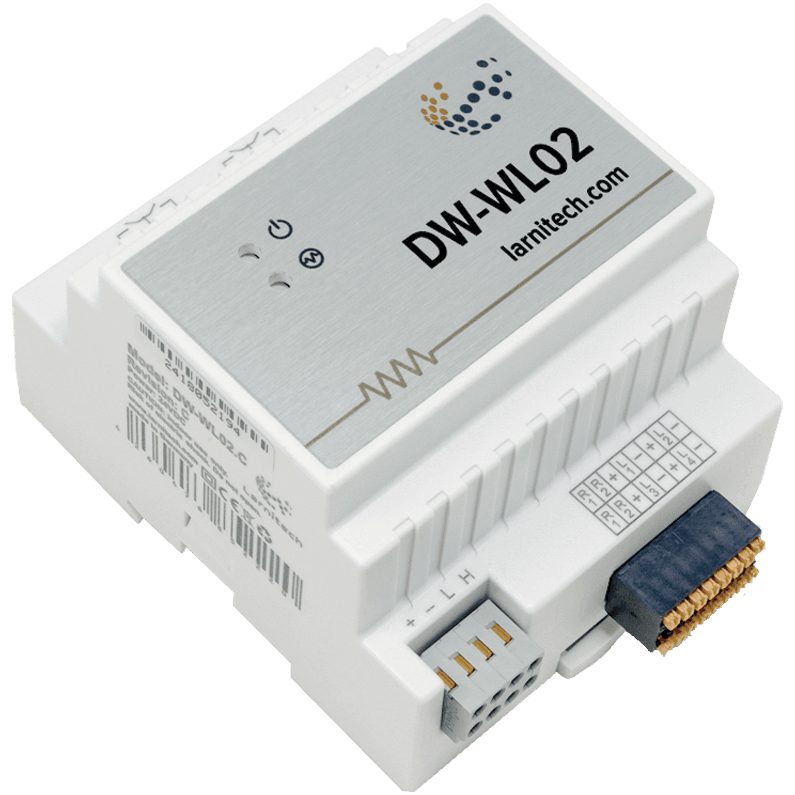

DW-WL02 - Image 1

Larnitech

DW-WL02

Contact for price
Brand
Larnitech
System
Larnitech
Quantity:

What's Included:

  • Professional installation and setup
  • Verified and certified equipment only
  • Initial configuration and user guidance
  • Reliable technical support

Technical Parameters

Size
4U, 69x110x58 mm
Weight
100 g
Bus type
CAN (4-wire)
Protection
IP40
Current type
AC
Power supply
11.5 … 27.5 V DC from CAN
Case material
ABS
Input voltage
0-250 V AC
Max current(24V)
Max current(24V)
Temperature range
-10 … +50 °C
Sensors VCC output
8..12 V
Output channels qty
4
Max load per channel
5 А
Sensor line max length
30m
Number of sensor inputs
4 FW-WL.A/EW-WL.A 16 FW-WL.B/EW-WL.B (4 per input)
Sensors max VCC current
70 mA
S1-S4 inputs max current
3 mA
Equipment installation type
DIN-rail (EN 60715)
Number of dry contact inputs
2
