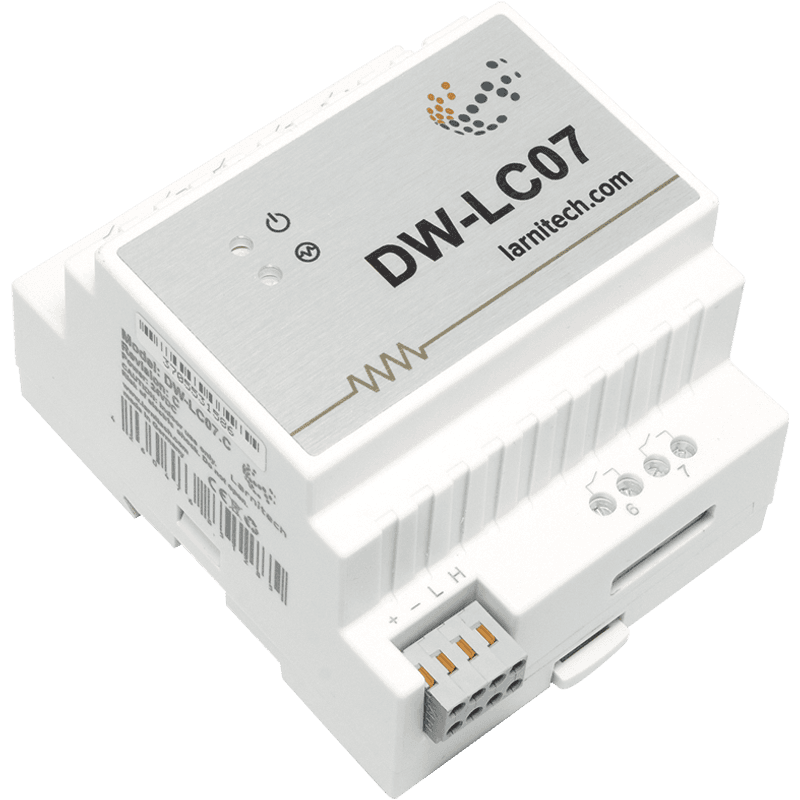

DW-LC07 - Image 1

Larnitech

DW-LC07

Contact for price
Brand
Larnitech
System
Larnitech
Quantity:

What's Included:

  • Professional installation and setup
  • Verified and certified equipment only
  • Initial configuration and user guidance
  • Reliable technical support

Technical Parameters

Size
4U, 69x115x58 mm
Weight
180 g
Bus type
CAN (4-wire)
Protection
IP40
Current type
AC/DC
Power supply
11.5 … 27.5 V DC from CAN
Case material
ABS
Input voltage
0-250V
Max current(24V)
150 mA
Temperature range
-10 … +50 °C
Output channels qty
7
Max load per channel
16 A
Equipment installation type
DIN-rail (EN 60715)
Permissible section of power supply cable to connect in socket: single-conductor cable multiple-conductor cable tipped multiple-conductor cable
0.5 … 4mm2 0.5 … 4mm2 0.5 … 2.5mm2
