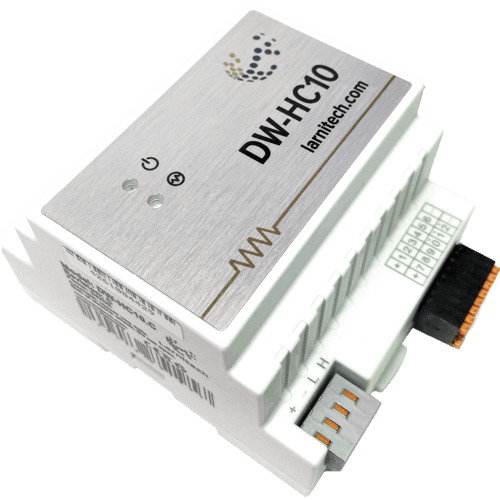

DW-HC10 - Image 1

Larnitech

DW-HC10

Contact for price
Brand
Larnitech
System
Larnitech
Quantity:

What's Included:

  • Professional installation and setup
  • Verified and certified equipment only
  • Initial configuration and user guidance
  • Reliable technical support

Technical Parameters

Size
4U, 69x110x58mm
Weight
Weight
Bus type
CAN (4-wire)
Load type
NO / NC / PWM (0.4Hz)
Protection
IP40
Current type
AC/DC
Power supply
11.5 … 27.5 V DC from CAN
Case material
ABS
Input voltage
20-250 V
Max current(24V)
110 mA
Supported sensors
DS18B20 / NTC (7-15kOhm)
Temperature range
-10 … +50 °C
Input channels qty
12
Output channels qty
10
Max load per channel
0.5A(110W at 220V)
Sensors line max length
30 m
Equipment installation type
DIN-rail (EN 60715)
