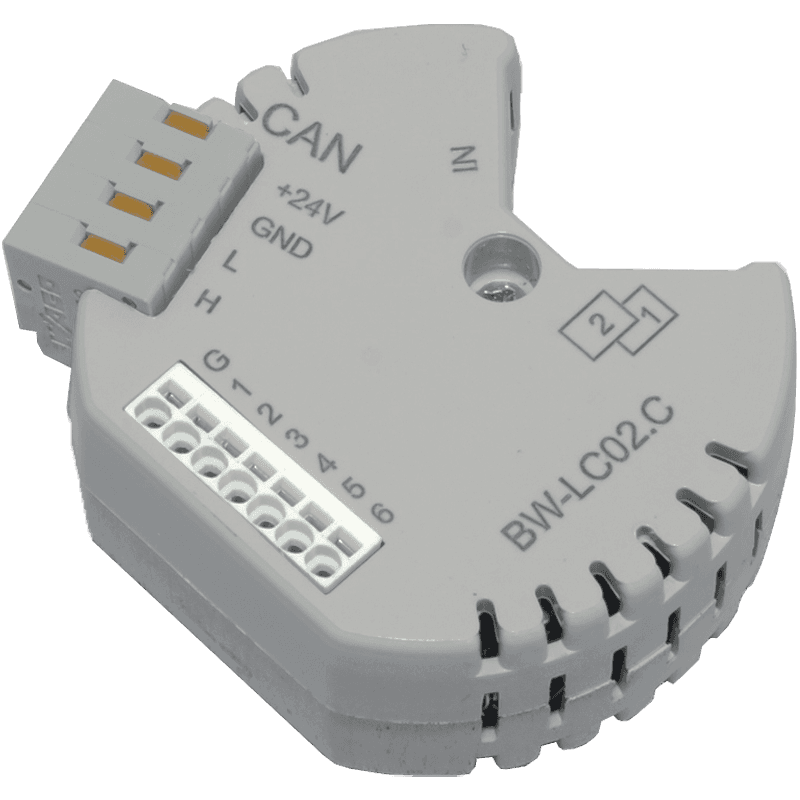

BW-LC02 - Image 1

Larnitech

BW-LC02

Contact for price
Brand
Larnitech
System
Larnitech
Quantity:

What's Included:

  • Professional installation and setup
  • Verified and certified equipment only
  • Initial configuration and user guidance
  • Reliable technical support

Technical Parameters

Size
45x42x14 mm
Weight
25 g
Bus type
CAN (4-wire)
Mounting
Free
Protection
IP40
Current type
AC
Power supply
11.5 … 27.5 V DC from CAN
Case material
ABS
Input voltage
100-250 V
Backlight voltage
3V
Max current (24V)
35 mA
Temperature range
-10 … +50 °C
Input channels qty
6
Output channels qty
2
Buttons, LED Buttons
6, 5
Max load per channel
2 A
Temperature sensor line max length
0.3 m
Permissible section of power supply cable to connect in socket: single-conductor cable multiple-conductor cable tipped multiple-conductor cable
0.5 … 4mm2 0.5 … 4mm2 0.5 … 2.5mm2
